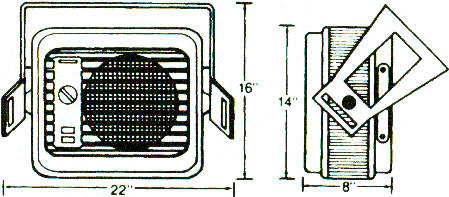

Qmark Type MUH-35 Unit Heater

We are an authorized distributor for Qmark^®, a division of Marley Engineered Products.

Fan-Forced, Metal Sheath - Hard-Wired Heater with Thermostat
Mounts either on the wall or from the ceiling can be used for primary or spot heating. For factories, garages, schools, etc.
Airflow can be directed horizontally, vertically or any position between for precise control.
Multiple wattage heat selector switch. Either 5KW or 3.3KW @ 240V (3.7KW or 2.5KW @ 208V) for just the right amount of heat.
Fan only switch allows fan to cycle automatically with elements or run continuously for air movement when no heat is required.
Built-in bi-metal thermostat. Range 40° to 90°F.
Heater is shipped with ceiling/wall bracket.
Heavy gauge die-formed steel housing.
Advanced pull-through air flow design draws air across heating element for more even air distribution and cooler element operation.
Specially designed venturi outlet to meet that added throw as required in vertical position.
Completely enclosed fan motor. 1/100 hp, 1600 rpm
Air delivery data: 210 cfm, 550 fpm
Maximum effective mounting height: 8' horizontal, 51; vertical, horizontal air throw 24', AWG 10 wire size
Statuary Bronze Finish
Aluminum-finned, copper clad steel sheath heating element has longer useful life, because of cooler sheath temperature and faster heat dissipation.
Automatic reset linear thermal cut-out capillary type, provides protection over entire length of element area.
Ruggedly built, yet lighter weight for easier installation. No piping flues, valves, or traps.
Meets all UL, NEC, and OSHA requirements.
UL Listed.

Selecting the quantity and wattage of heaters you will need in a given area depends on whether you are using the heaters as a primary heat source (no other heaters present) or supplementing existing heaters such as a forced air furnace system. A general rule of thumb for primary heating is to use 10 Watts / Square Foot of heat. Example: a 10'x10' room is 100 square feet:

100 x 10 W/Ft² = 1000 Watts.

Keep in mind that this is for an insulated building or room insulated to "electric heating" standards and is an estimation based on average conditions.

Replacement Parts

You must have the free Adobe Acrobat Reader plug-in.

Secure Online Ordering Delivery time: typically ships in 1 working day or less plus allow additional time for your selected UPS or FedEx shipping method. Your shipping cost will be displayed in your shopping cart. This delivery time is for normal conditions and is subject to Qmark factory availability.
Item ID	Catalog#	Volts	Watts	BTUH	Amps	Click "Select" below to see our price and actual real-time quantity in stock
QMARK685360047577	MUH-35	240	5000/3333	17061/11372	21.0/14.0
QMARK685360047577	MUH-35	208	3750/2500	12795/8530	18.0/12.0
QMARK685360150703	PHCS1B	Cord & Plug Assembly

Qmark^® is a registered trademark of Marley Engineered Products.
